Basic System Architecture Schematic for Energy Management & Monitoring System
Energy Monitoring System
An intelligent energy management system, is designed to reduce energy consumption, improve the utilization of the system, increase reliability, predict electrical system performance, generate records & optimize energy usage to reduce the cost. Greenergy fully complies with the main objective of ISO 50001 standard to continuously improve energy consumption performance and to identify energy reduction opportunities.

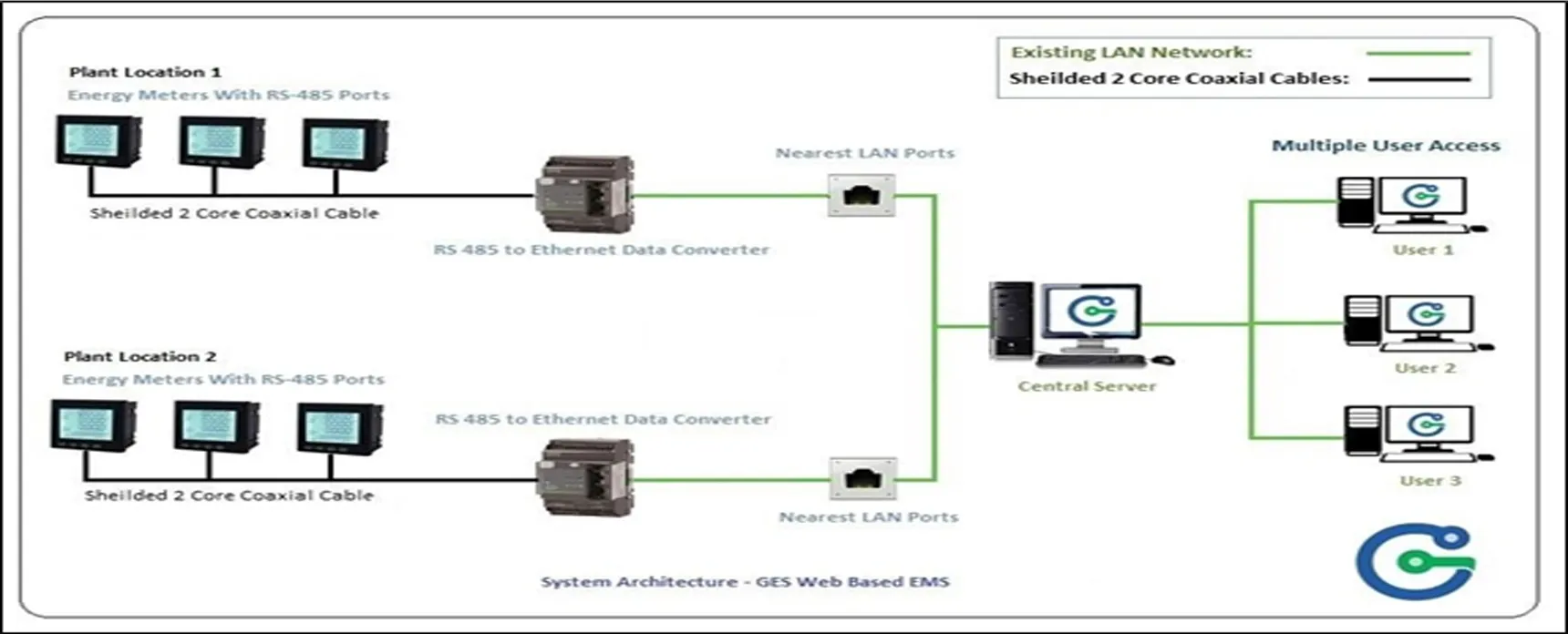

NETWORKING ARCHITECTURE
- Looping of meters with ‘Daisy-chain Topology’ for communication channel for all energy meters with RS 485 port at respective locations is already exist.
- As Energy Meters work on ‘RS-485’ communication; to use the existing network, we will incorporate ‘RS-485 to Ethernet Data Converters’ by cable supply from panel to converter.
- One end of ‘RS-485 to Ethernet Data Converter’ will be connected to LAN port and the other end will be connected to the Energy Meters from various plant locations
- The LAN port will be connected to Central Server at the plant level
- Above set up will establish a communication channel for all Energy Meters in the plant by bringing those in the existing LAN network
- The central server will be responsible for communicating with all Energy Meters of the plant
- At a predefined interval; the Central Server will start a polling cycle to get the Real-Time data from all the connected Energy Meters
- This interval will be configurable on the Central Server as per Customer’s Requirement
- The Computer will verify the collected data and will store all the data for future
Features
- Most recent polled data for all meters can be seen in configurable list view pattern.
- Real time data acquisition over RS-485 MODBUS.
- Compatible with all Power/Energy meters with RS 232 /485 communication port.
- It records all electrical parameters such as : 3 phase voltage, line voltage, current, Power factor, KW, KVA, KWH, KVAH,V-THD, I – THD.(This parameter may vary as per meter make & model)
- Multiuser, multi-location accessibility for dashboard.
- It supports dual source meters.
- Reading for a specific period can be measured accurately.
- It continues monitoring of all types of loads.
Highlights
- Low system resource requirements & run efficiently on any computer
- Simple, Intuitive and interactive user interface
- Supports wired as well as wireless network modules
- Programmable data logging interval
- Simple, scalable & versatile
- Being modular system, it allows you to pick and pay for your exact requirement.
Benefits
- Enhance productivity
- Removes manual errors, saves time and provides 100% accurate readings.
- Maintains reliability & authenticity
- Ensure Energy Efficiency
- Helps to conduct energy accounting and energy balancing
- Performs cost benefit and ROI analysis through accurate data.
- Improve the quality of maintenance
- Quantifies losses.
- Plans preventive maintenance schedules based on actual running time.
