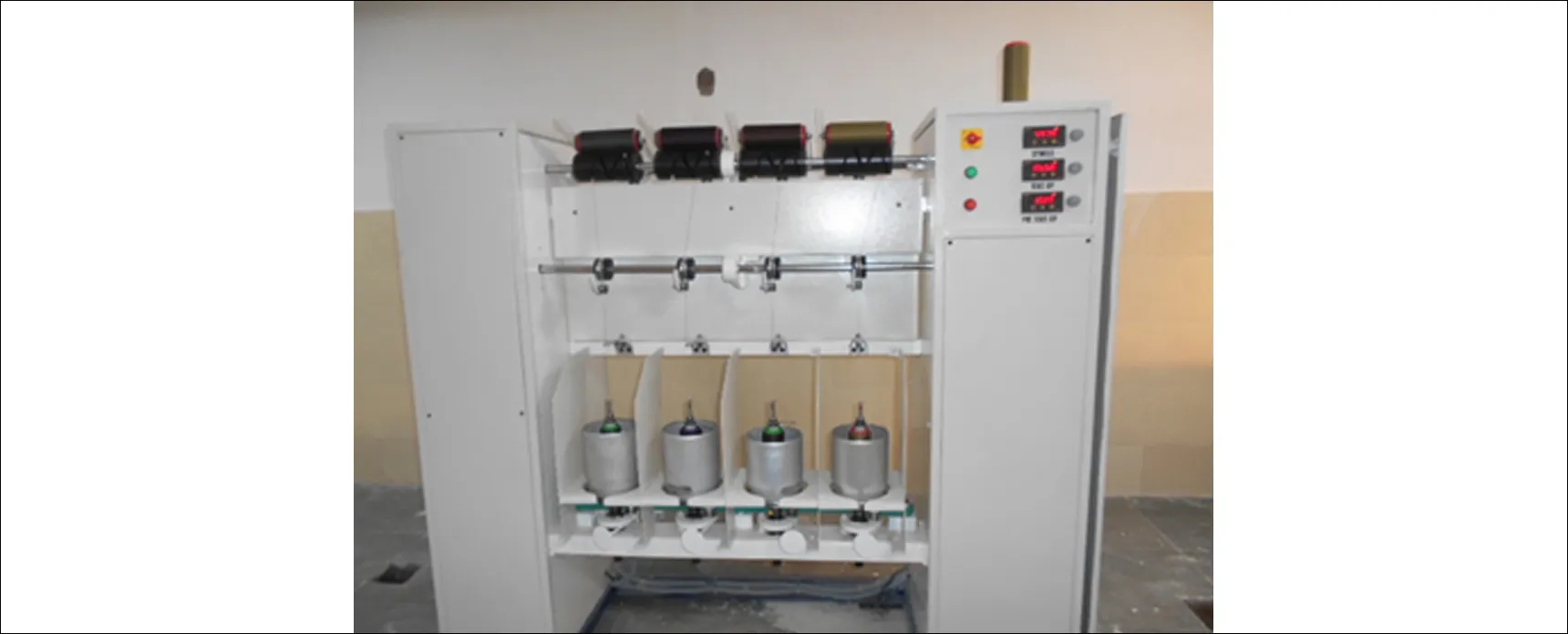

Miniature Post Spinning
Features
- Computer controlled
- 4 Spindles Machine
- 150mm Pot
- 230mm Guage
- 5-50 TPI
- Suitable for Cheese wound feed package of 170 mm traverse
- Delivery Package size of 152mm traverse by 250mm dia cheese with tangential belt drive with for S & Z twist.
- Individual AC Variable speed motors with control system to control the speeds of Spindle.
- User Friendly Menu drive Software.
- Power – 1.2 kw

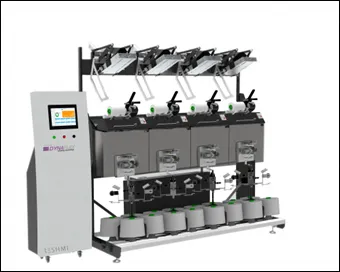

LAB MODEL ASSEMBLY WINDER
Features
- Microprocessor Based single sided Lab Model Assembly Winder
- It has 8 drums, 4 drums suitable for coe winding & 4 drums suitable for cheese winding.
- 230mm gauge.
- 150mm traverse suitable for producing input cheese package for TFO
- Cones having individual motor for each drum with inverters, electrical, Control systems and Other Accessories.
ROTOR SPINNING MACHINE
Features
- Computer Numerically controlled single sided Lab Model Rotor spinning Machine suitable for Research & Demo Purposes having 4 rotors.
- 230 mm Gauge arrangement.
- It has 38/43/48 rotor diameters with OK37/40 opening rollers, R4/10 Navels.
- Built in automatic indicators & quick response sensors to monitor yarn continuity & feeding silver trash separator & discharge tunnel for better cleaning.
- Feeding can size of 14 by 42” & take up package size of 150 by 250mm with individual AC variable speed motors.
- User-friendly menu driven software to ease man/machine dialogue with a possibility to enter and optimize parameters while the machine is running or at rest. Inclusive of motors, electrical, control system, PLC, Computer, UPS & other accessories.
