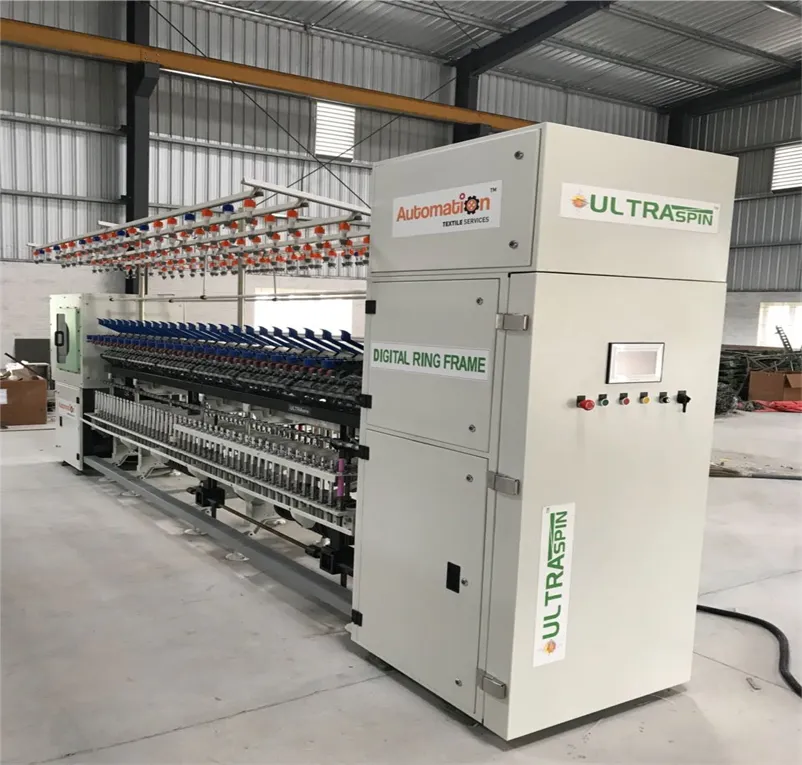

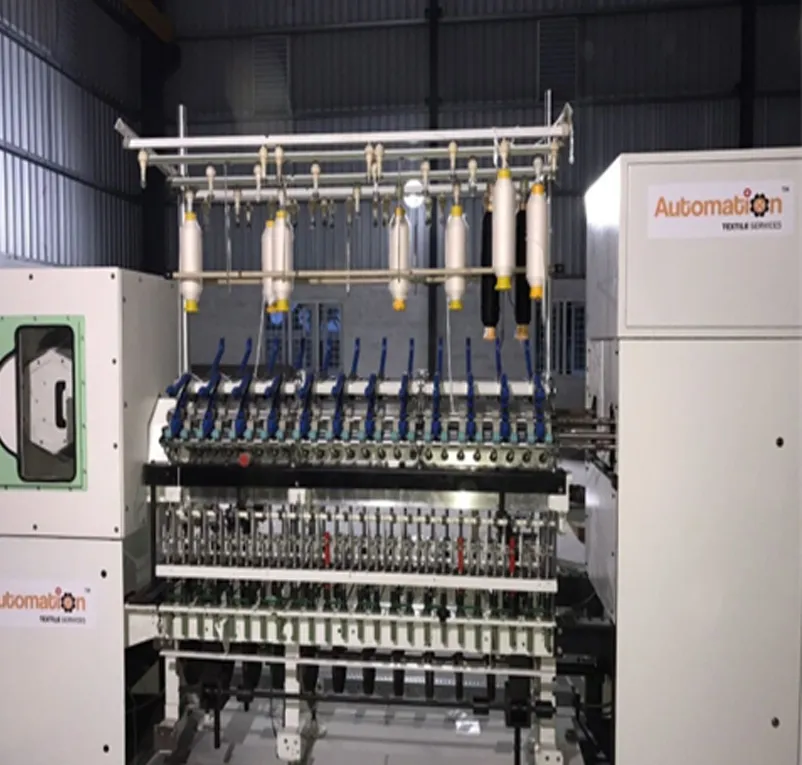

ATS TRYTEX - Ring Frame
Features
- Computer controlled (HMI).
- Material : Cotton, Man-made &
- Application : Short Staple upto 60 mm
- Spindle gauge 70mm
- Lift
- Draft
- Individual Servomotor for Front/Middle/Back for Bottom
- Ring Rail movement is positive drive by servomotor.
- Power 1.2 kw.
- No Gear Change in Ring Frame required
- Twist & Draft set through the Touch Screen
- Capable to produce Slub yarn.
- Lycra attachment can be given with extra
Value Added Features
Slub Yarn
- Normal Slub
- Injection Slub
- Slub Over Slub
- Negative
- Multi Count & Multi
Lycra attachment (Offered at extra price).
- Soft Core Lycra
- Hard Core (Option)
- Dual Core (Option)
Technical Details:
- Drafting: Texpart Top Arm according to the material
- Individual Roll Pressure Adjustment.
- Cots & Apron: Accotex.
- Ring: 38mm dia.
- Spindle: Texpart CS1.
- Spindle and Fan run by VFD.
